Barakah Centre
Architecture

Floor Plans

Lower ground plan
Lower Ground

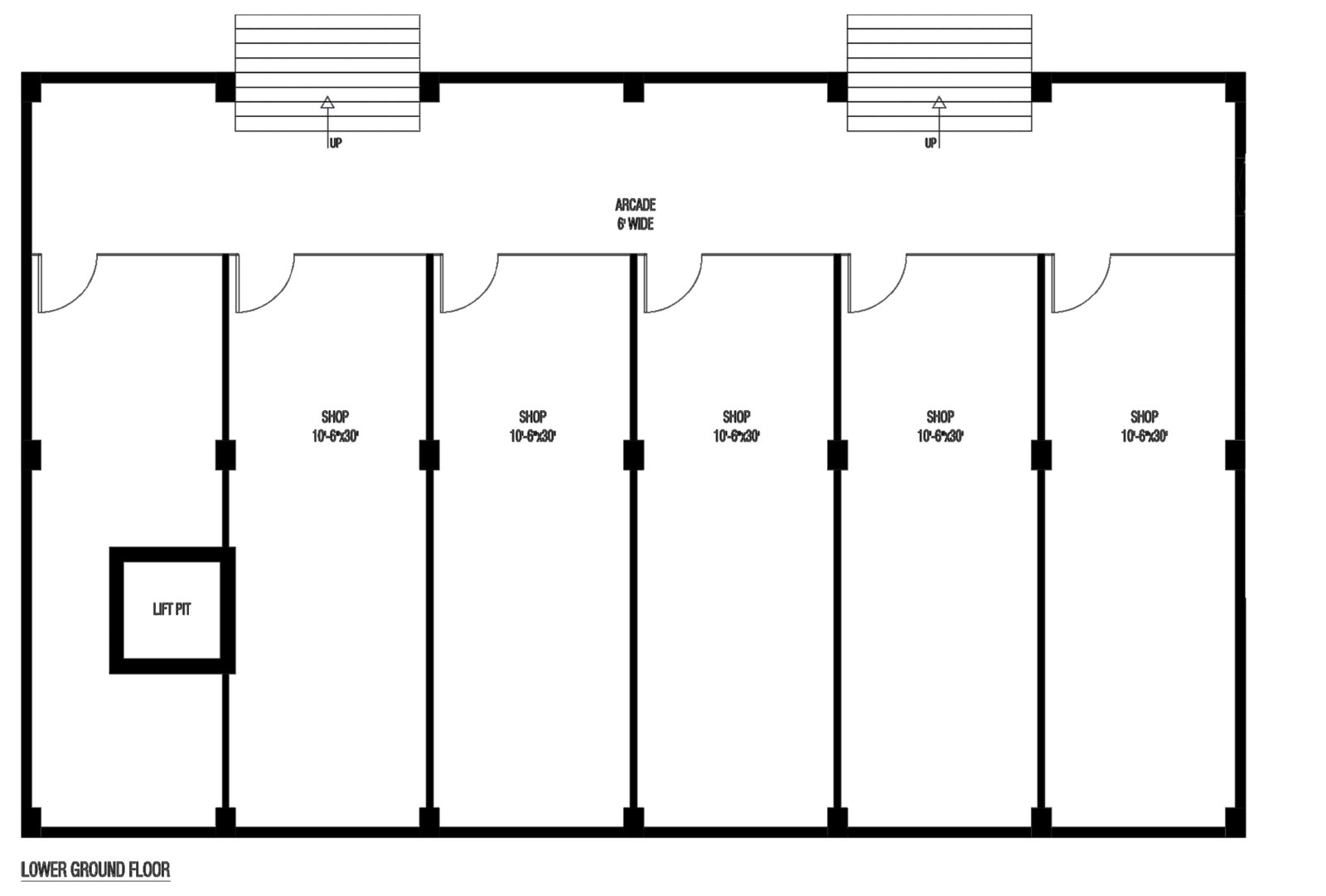

Six Retail Shops

ShopsLG-01 to LG-06
Each shop10'-6" × 30'
Arcade6' wide
Lift pitBeside LG-01
StaircasesTwo internal
Ground floor plan
Ground Floor

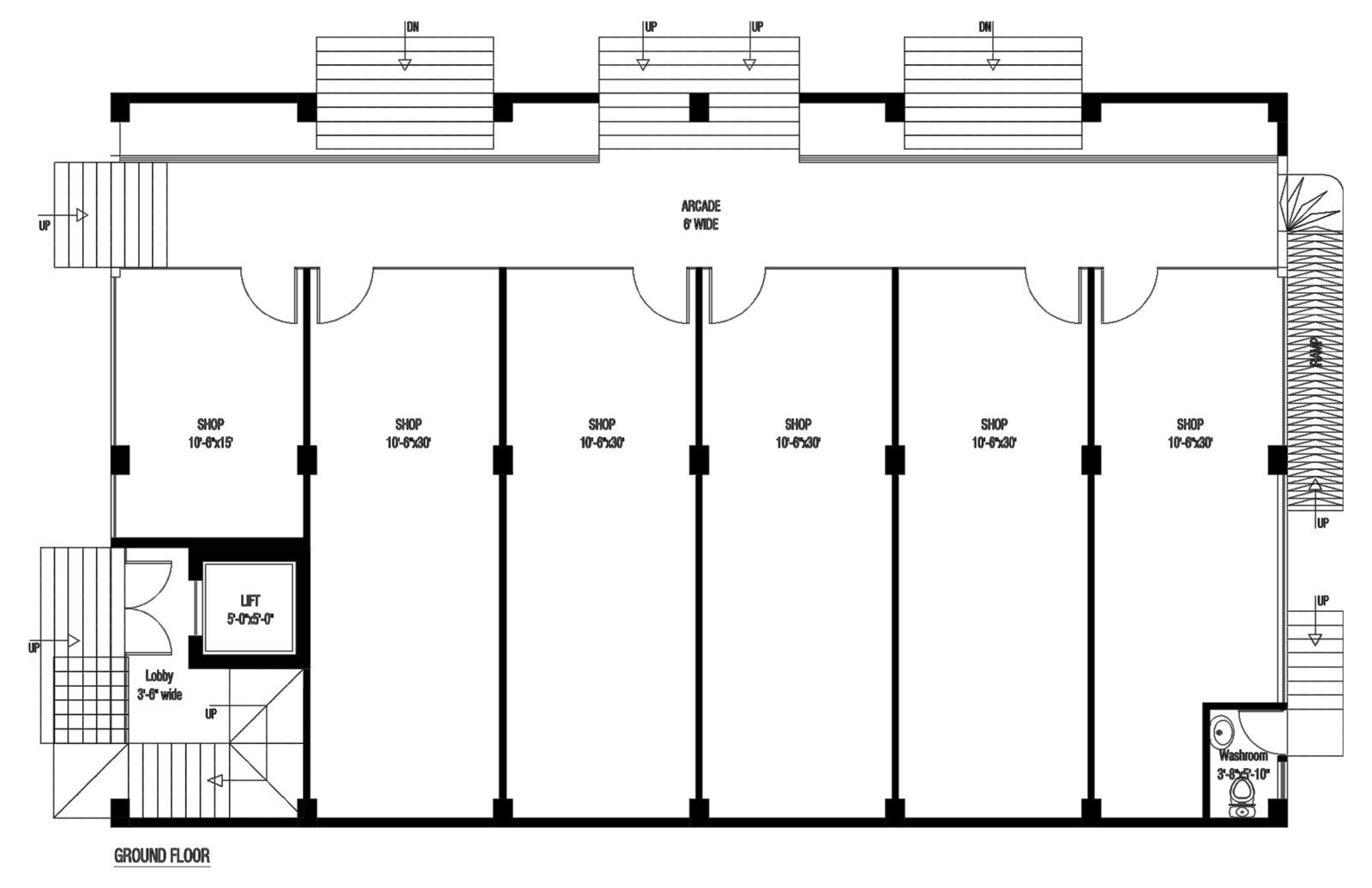

Six Shops, Lobby & Lift

G-0110'-6" × 15'
G-02 to G-0610'-6" × 30'
Arcade6' wide
Lift5'-0" × 5'-0"
Lobby3'-6" wide
Washroom3'-8" × 5'-10"
RampSide access
Typical floor plan
Typical Floor · 1st to 5th

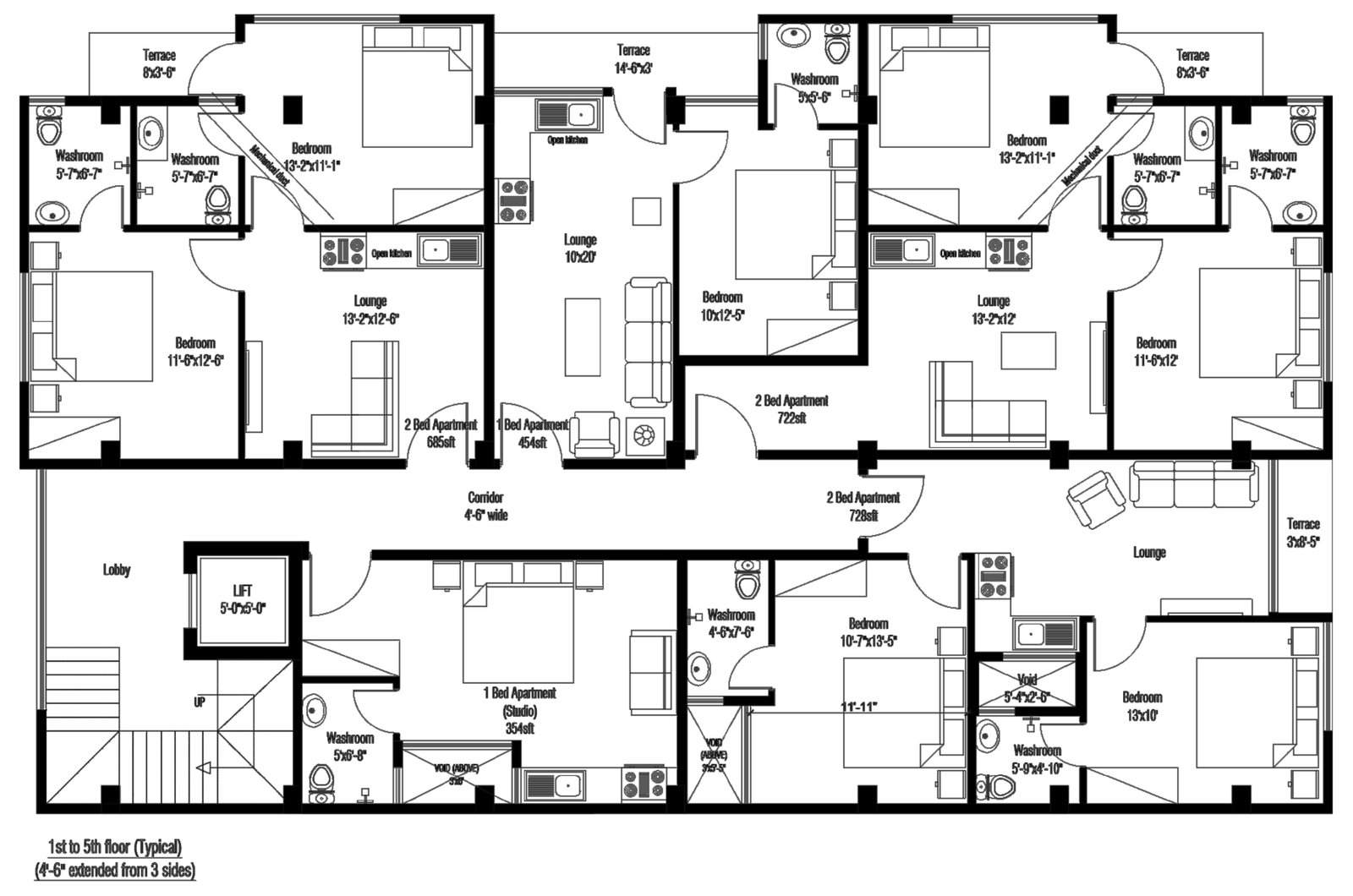

Five Residences per Floor

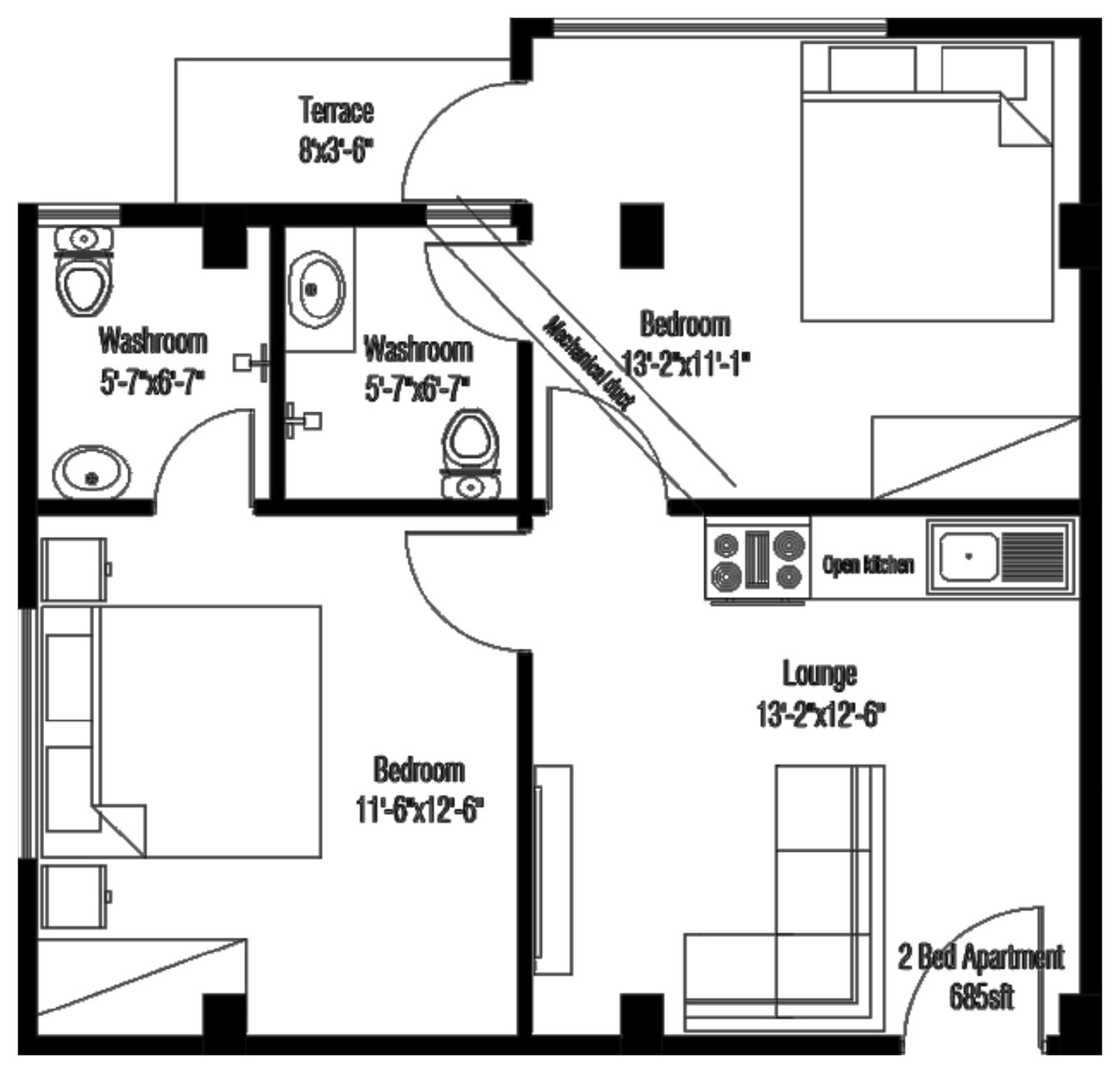

X01 · Two-Bed685 sq ft

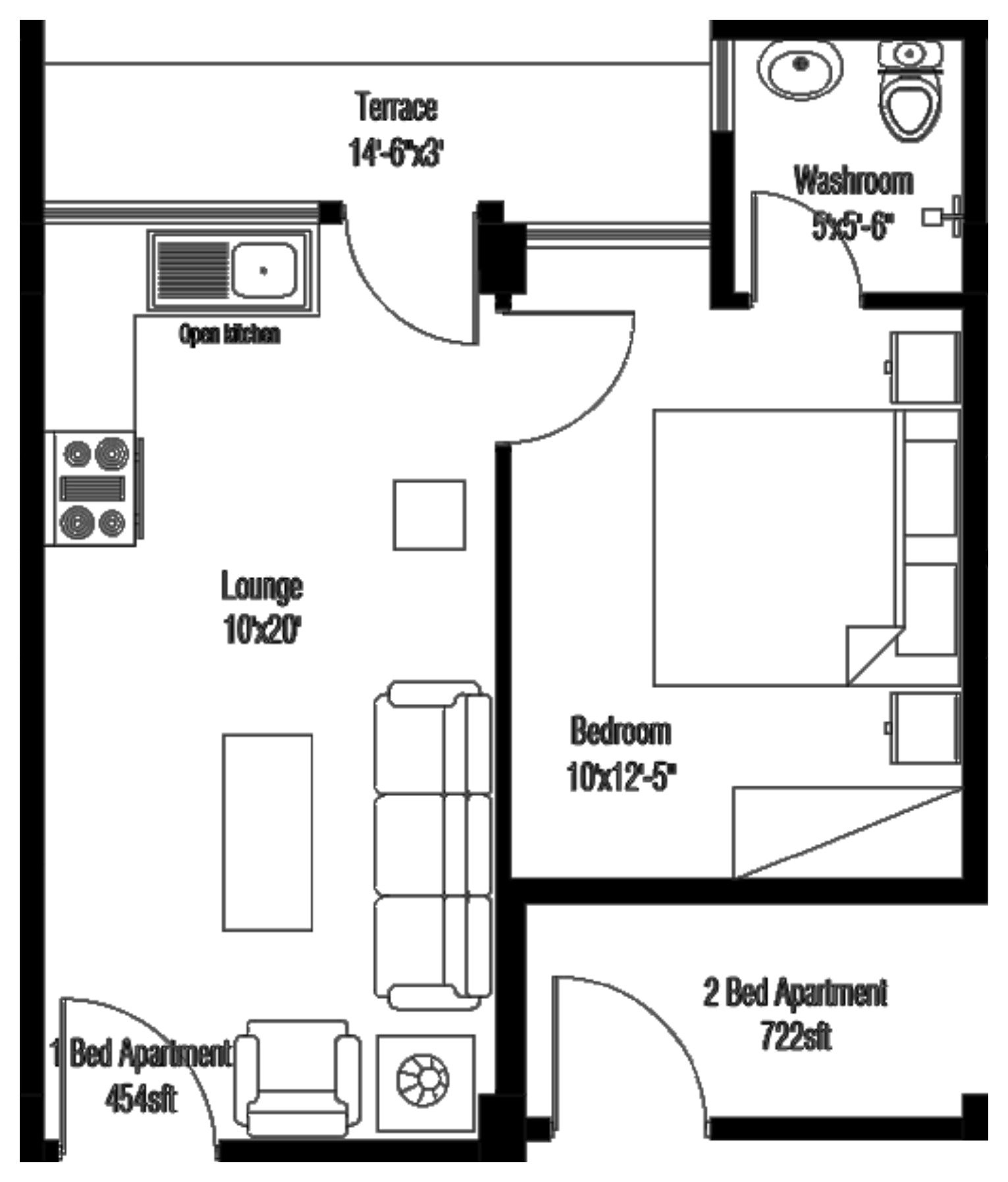

X02 · One-Bed454 sq ft

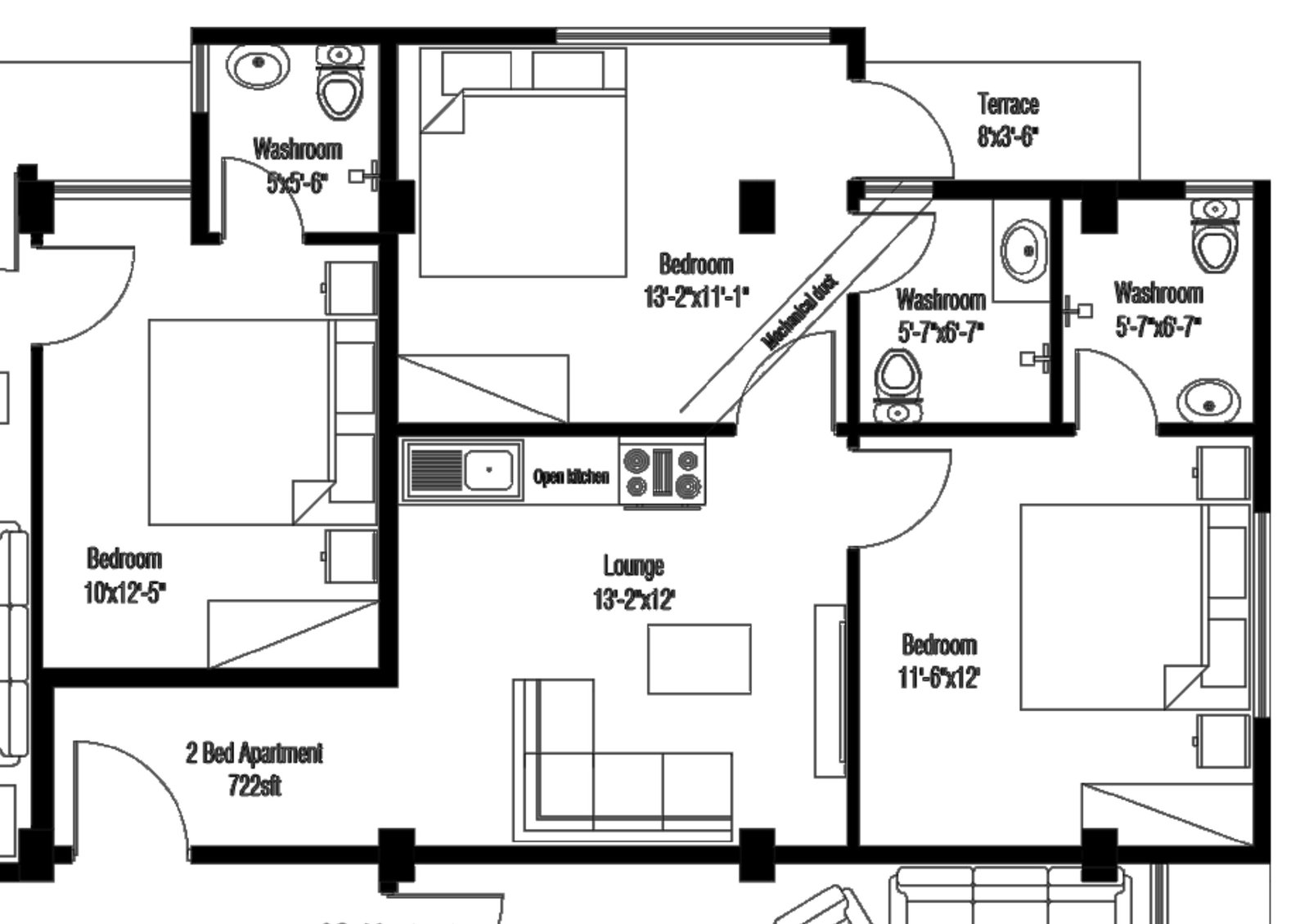

X03 · Two-Bed722 sq ft

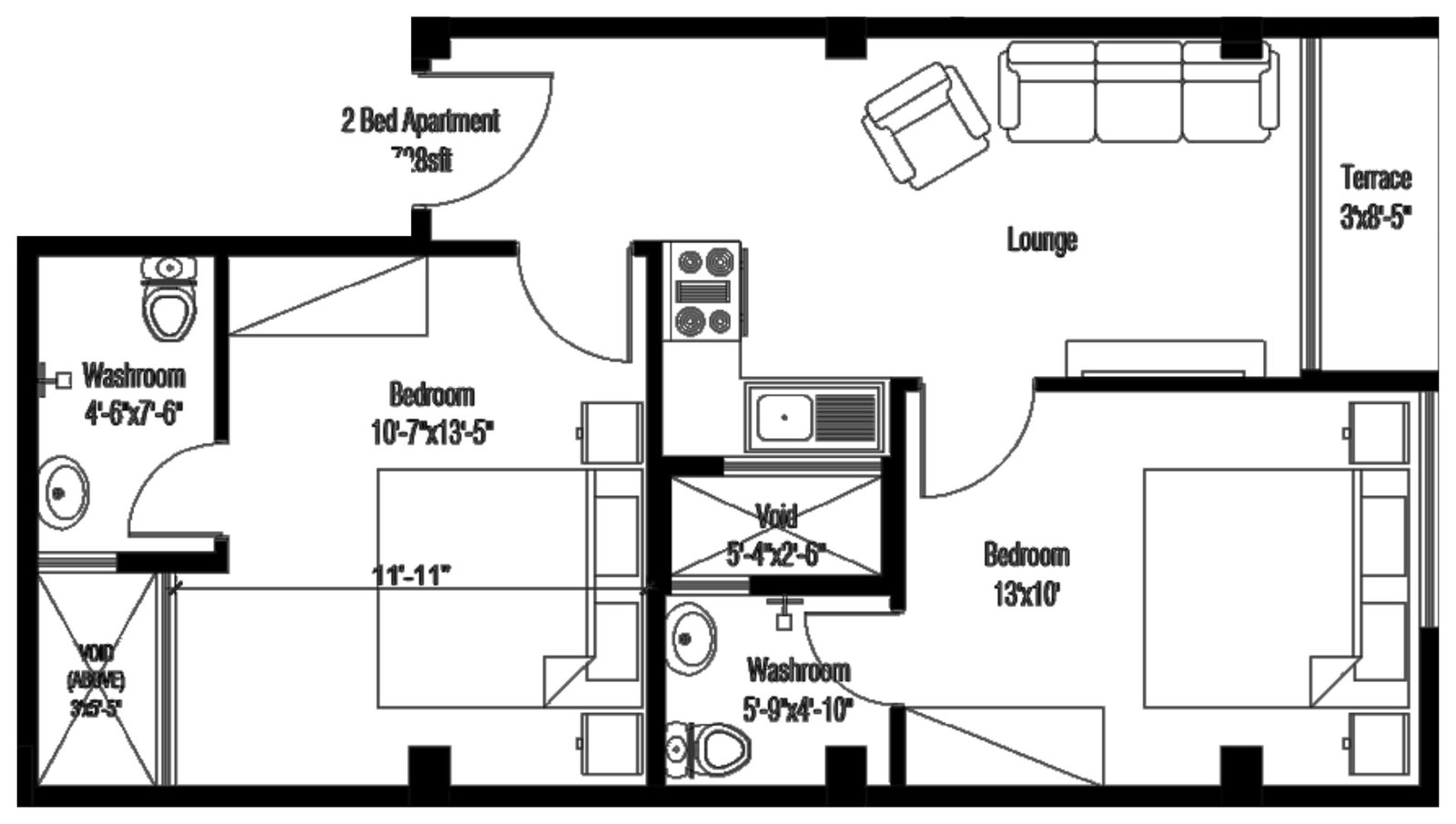

X04 · Two-Bed728 sq ft

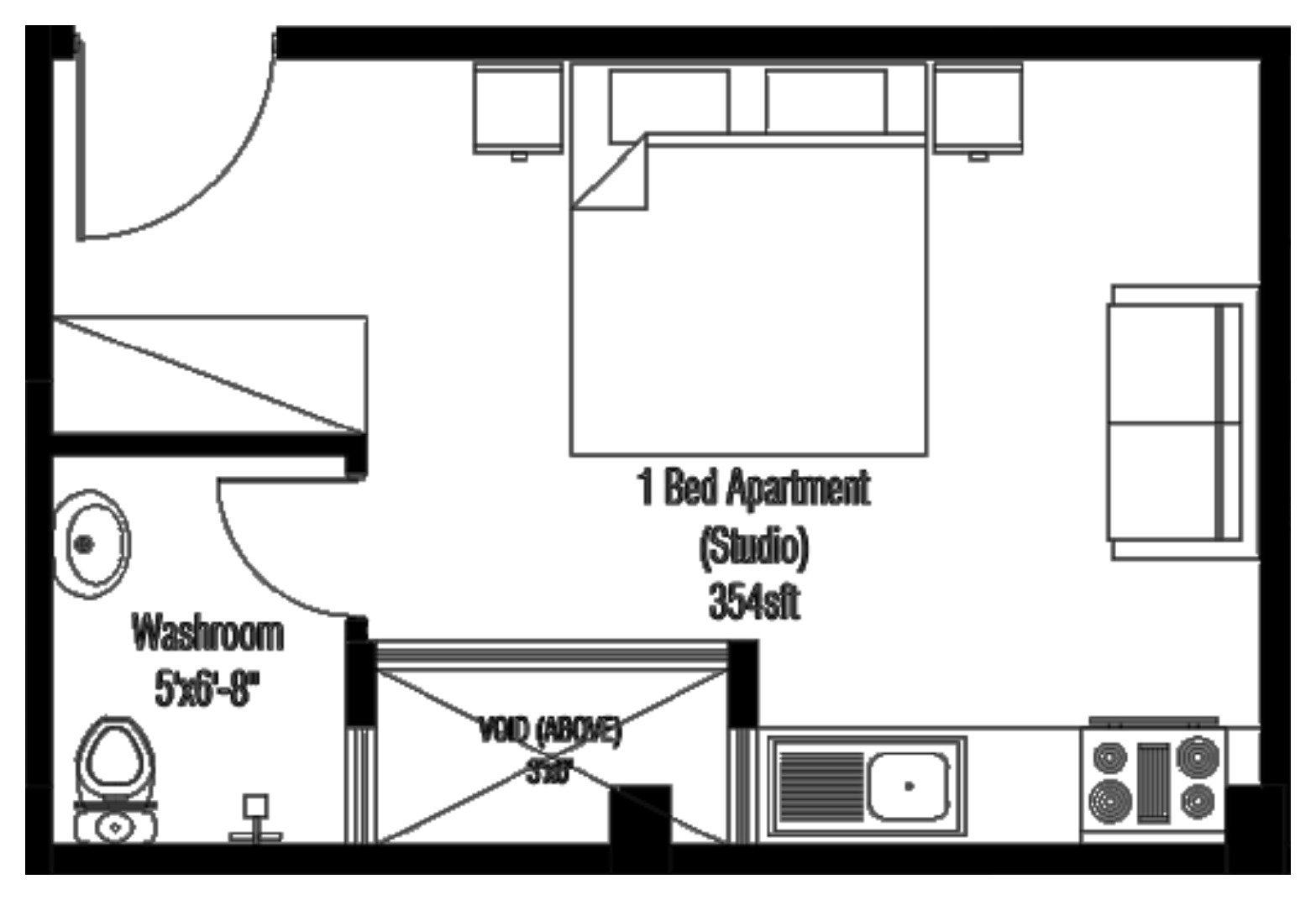

X05 · Studio354 sq ft
Lift5'-0" × 5'-0"
Corridor4'-6" wide
Floor extension4'-6" on 3 sides
Apartment Blueprints

Every Residence, Drawn to Scale

Click any plan to enlarge.

X01
685 sq ft

Two-Bed
X02
454 sq ft

One-Bed
X03
722 sq ft

Two-Bed
X04
728 sq ft

Two-Bed
X05
354 sq ft

Studio
Floor
Typical

Isometric Floor View
